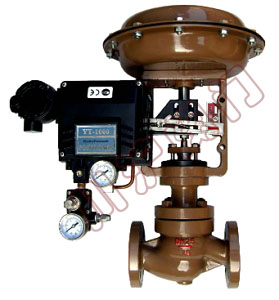

Pneumatic single seat control valve

Pneumatic single seat control valve
Pneumatic single seat control valve

1.Pneumatic single seat control valve Product overview

Pneumatic diaphragm control valve with top guide structure, equipped with multi spring actuator, flow channel was streamlined S. Has the advantages of compact structure, light weight, flexible action, small pressure drop loss, valve capacity, flow characteristics of precision, convenient maintenance and so on, can be used in harsh working conditions. Particularly applicable to allow a small amount of leakage, the valve before and after the pressure is not the occasion. This series of products are the normal temperature, high temperature, low temperature, regulating off type, bellows seal type, jacket insulation type and other types of. Valve caliber range is DN20-300, a variety of grades suitable fluid temperature range of -196-+560 ℃. Leakage level IV, V, VI class. There is a straight line, the percentage of properties such as flow characteristics. A variety of different specifications are available.

2.Pneumatic single seat control valve Main parts materials

Parts Name Material
Body WCB CF8 CF8M CF3M
Seat 304 304 316 316L
Gasket PTFE
Spool 304 304 316 316L
Guide sleeve 304 304 316 316L
Bonnet WCB CF8 CF8M CF3M
Stem 304 304 316 316L
Packing PTFE
Spring 65Mn 304 316 316L
Screw nut 304 304 316 316L

3.Pneumatic single seat control valve Main technical parameters

DN（mm） 20 25 32 40 50 65 80 100 125 150 200
Rated Flow
KV		 Line 7.6 12.1 19.4 30.3 48.3 75.9 121 193.6 302.5 484 759
percentage 6.9 11 17.6 27.5 44 69.3 110 176 275 440 693
Rated stroke L（mm） 16 25 40 60
PN（MPa） 1.6 2.5 4.0 6.4 10.0
Signal range Pr（KPa） 20-60、20-100、40-200、60-100、80-240
Air pressure Ps（MPa） 0.14、0.25、0.28、0.40

4.Pneumatic single seat control valve Performance of pneumatic actuator

Model ZHA/B-11 ZHA/B-22 ZHA/B-23 ZHA/B-34 ZHA/B-45 ZHA/B-56
stroke（mm） 10 10、16 16、25 40 40、60 100
Effective area（cm） 200 350 350 560 960 1600
D1（mm） 32 60 60 80 95 100
D2（mm） / 80 80 105 122 130
n-d / 2-Φ10 2-Φ10 4 -Φ12 4 -Φ14 4 -Φ18
M M8 M8 M8 M12×1.25 M16×1.5 M20×1.5
S（ZHA/ZHB）mm 80/70 100/84 100/75 154/114 180/115 260/160
Air interface size M10×1 M12×1.25 M16×1.5
Air pressure 0.14、0.25MPa
Environmental temperature -30~60oC
Spring range 0.02~0.10、0.04~0.10、0.08~0.24MPa

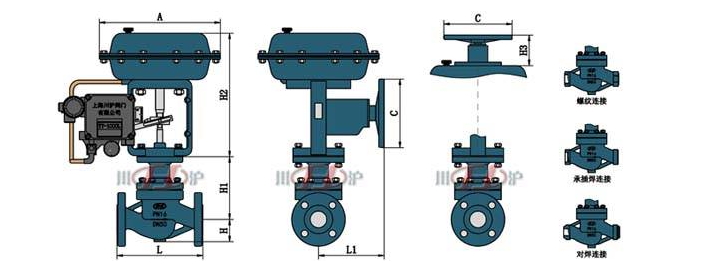

5.Pneumatic single seat control valve Dimension

Pneumatic single seat control valve Dimension
DN 20 25 32 40 50 65 80 100 125 150 200
structure length
（L） 		PN16/25 184 184 200 222 254 276 298 352 420 451 543
PN40 184 184 200 222 254 276 317 368 400 473 568
PN64、100 206 210 251 251 286 311 337 394 500 508 610
H1 128 128 152 152 160 205 205 208 273 333 364
H2 298 298 298 298 298 380 380 380 510 510 510
H3 208 208 224 228 228 334 334 342 408 453 482
H4 338 338 402 402 405 627 628 635 698 702 728
H5 53 58 68 73 80 90 98 108 123 140 168
H6 180 180 180 180 180 236 236 236 310 310 310
A 282 282 282 282 282 360 360 360 470 470 470
C 220 220 220 220 220 270 270 270 320 320 320
L1 289 289 289 289 289 347 347 347 476 476 476
PN GB：1.6、2.5、4.0、6.4、10.0MPa ANSI：150、300、600LB JIS：10、20、30、40K
Actuator ZHB-22 ZHB-23 ZHB-34 ZHB-45

6.Pneumatic single seat control valve Ordering Information

1.DN
2.PN
3.Valve Connection
4.Actuators
5.Actuator mode of action
6.Process media and state
7.After the valve before the pressure valve pressure
8.Maximum, normal, minimum flow
9.Medium temperature
