Homepage >> Valve >> Pneumatic Ball Valve >>Pneumatic control ball valve

Pneumatic control ball valve|Pneumatic V type ball valve

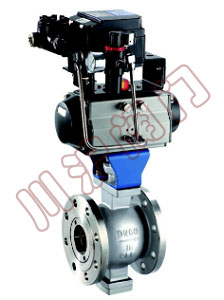

Pneumatic control ball valve Pneumatic control ball valve Structure
Pneumatic control ball valve Pneumatic control ball valve Structure

1.Pneumatic control ball valve Product overview

Pneumatic control ball valve is regulated by a single action or double acting pneumatic actuator and flange type V type ball valve, and is equipped with electric - valve positioner YT locator and can be equipped with Siemens smart positioners. By controlling the signal of 4-20mA positioner to achieve proportional control valve. Ball valve spool design with a V-notch special shape, with a precise closure properties and control functions for a variety of control applications, compact structure, small size and so on.
Because it is no gap between the rotary valve and seat, and therefore have a lot of shear force and self-cleaning properties, so Pneumatic control ball valve suitable for containing fibrous or suspension of tiny solid particles and solid granular control. It can be widely used in petroleum, chemical, paper, chemical, electric power, metallurgy, pharmaceutical, environmental protection and other industrial sectors of the automatic control system.

2.Pneumatic control ball valve Main technical parameters

DN 25 32 40 50 65 80 100 125 150 200 250 300 350 400
Rated flow coefficient Cv 32 43 78 90 160 250 360 610 1120 1850 2950 3700 7195 11466
PN PN1.6、2.5、4.0、6.4MPa
Strength Test 2.4～9.6MPa
Seal test 1.76～7.0MPa
Flow characteristics Approximately equal percentage
The valve plate angle 0°～90°（Adjustable）
Allow leakage level Soft Seal: zero leakage
Hard seal: ≤ rated Cv × 0.001%		 Soft seal: VI microbubbles grade metal seal: ≤ Rated CV × 0.065%
Action time（S/90°） 8.5～30 36～60
Adjustable ratio 250:1 300:1
Actuator Configuration AT, AW series of single and double acting pneumatic actuators
Control Type 4～20mA

3.Pneumatic control ball valve Actuator Technical Data

Actuator Model AT, AW series of single and double acting pneumatic actuators
Supply pressure 0.4～0.7MPa
Air Connection G1/4"、G1/8"、G3/8"、G1/2"
Ambient temperature -30～+70℃
Action Single acting actuators: air-to-close (B) - loss of gas when the valve opening (FO); open air (K) - when the loss of gas valve closed (FC)
Double-acting actuators: air-to-close (B) - when the loss of gas valve to keep (FL); open air (K) - when the loss of gas valve to keep (FL)
Accessories Positioners, solenoid valve, air filter regulator, to secure his position valve, limit switch, valve position transmitter, hand wheel, etc.

4.Pneumatic control ball valve Performance Specifications

DN(mm) DN15-300
PN PN(MPa) 1.0 1.6 2.5 4.0 6.4
Test pressure Strength Test 1.5 2.4 3.75 6.0 9.60
Seal test 1.1 1.76 2.75 4.4 7.04
Low air tightness test 0.5～0.7
For media Water, oil, steam, nitric acid (temperature ≤ 200 ℃), acetic acid (temperature ≤ 200 ℃)

5.Pneumatic control ball valve Seat Selection

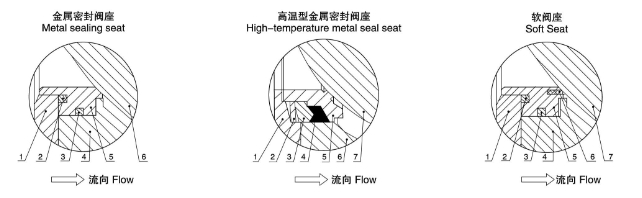

Pneumatic control ball valve Seat
Pneumatic control ball valve Seat

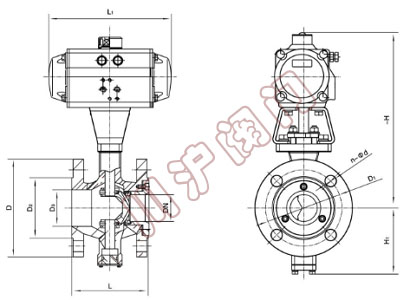

六、Pneumatic control ball valve Dimension

DN L L1 -H H1 D D1 D2 D3 C f n-Φd
25 62 159 260 87 115 85 65 38 16 2 4-Φ14
32 105 159 267 87 140 100 76 42 18 3 4-Φ18
40 114 211 292 87 150 110 84 50 18 3 4-Φ18
50 124 248 292 97 165 125 99 60 20 3 4-Φ18
65 145 269 327 112 185 145 118 75 20 3 4-Φ18
80 165 315 359 112 200 160 132 94 20 3 8-Φ18
100 194 345 359 122 220 180 156 110 22 3 8-Φ18
125 213 409 399 142 250 210 184 135 22 3 8-Φ18
150 229 438 461 165 285 240 211 165 24 3 8-Φ22
200 243 550 509 195 340 295 266 210 24 3 12-Φ22
250 297 633 603 237 405 355 319 260 26 3 12-Φ26
300 334 730 790 287 460 410 370 310 284 4 12-Φ26
350 414 1180 828 338 520 470 429 360 30 4 16-Φ26
