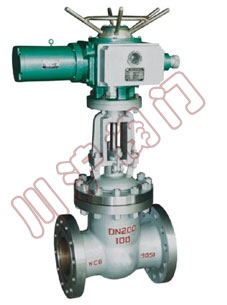

Electric wedge type gate valve

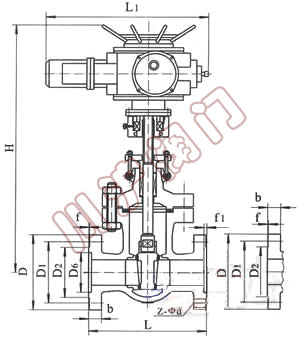

Electric wedge type gate valve Electric wedge type gate valve Structure diagram
Electric wedge type gate valve Electric wedge type gate valve Structure diagram

1.Electric wedge type gate valve Product overview

Electric Wedge Gate Valve is designed applicable for pipelines of various working conditions such as petroleum, chemical engineering, thermal power station, etc. acting to connect and cut off the medium in the pipe..

2.Electric wedge type gate valve Design and Manufacture Standard

Design and Manufacture Standard
Design and manufacture:GB/T12234
Flange end dimension:JB/T79
Pressure and temperature:GB/T9131
Test and inspection:JB/T 9092

3.Electric wedge type gate valve Characteristics

Ⅰ.Gate valves can not be used for regulate flow, fluid resistance, The seal face is brushed the medium with the corrosion is small.
Ⅱ.The open and close save effort.
Ⅲ.The medium flows does not limits, does not reduce depressurize.
Ⅳ.Structure is simple, structure dimension is short, manufacture's technology capability and suitable many areas.

4.Electric wedge type gate valve Dimension

PN(MPa) DN(mm) standard value reference value Electric model
L D D1 D2 D6 b f f1 Z-φd L1 H Quality(kg)
1.6 50 250 160 125 100 　 16 3 　 4-φ18 590 678 90 DZWl0A
65 265 180 145 120 　 18 3 　 4-φ18 590 693 96 DZWl5A
80 280 195 160 135 　 20 3 　 8-φ18 590 755 108 DZW20A
100 300 215 180 155 　 20 3 　 8-φ18 590 820 126 DZW20A
150 350 280 240 210 　 24 3 　 8-φ23 590 994 199 DZW20A
200 400 335 295 265 　 26 3 　 12-φ23 590 1138 254 DZW30A
250 450 405 355 320 　 30 3 　 12-φ25 810 1409 310 DZW45A
300 500 460 410 375 　 30 4 　 12-φ25 810 1588 391 DZW60
350 550 520 470 435 　 34 4 　 16-φ25 830 1755 729 DZW90
400 600 580 525 485 　 36 4 　 16-φ30 830 1902 992 DZWl20
450 650 640 585 545 　 40 4 　 20-φ30 870 214l 1168 DZWl80
500 700 705 650 608 　 44 4 　 20-φ34 870 2276 1222 DZW250
600 800 840 770 718 　 48 5 　 20-φ41 870 2474 1376 DZW250
2.5 50 250 160 125 100 　 20 3 4-φ18 590 678 95 DZWl0A
65 265 180 145 120 　 22 3 4-φ18 590 693 99 DZWl5A
80 280 195 160 135 　 22 3 8-φ18 590 755 113 DZW20A
100 300 230 190 160 　 24 3 8-φ23 590 820 132 DZW20A
150 350 300 250 218 　 30 3 　 8-φ25 590 934 206 DZW30A
200 400 360 310 278 　 34 3 　 12-φ25 590 1138 257 DZW30A
250 450 425 370 332 　 36 3 　 12-φ30 810 1409 317 DZW45A
300 500 485 430 390 　 40 4 16-φ30 810 1588 412 DZW60A
350 550 550 490 448 　 44 4 16-φ34 830 1750 750 DZW90
400 600 610 550 505 　 48 4 　 16-φ34 830 1902 1042 DZWl20
450 650 660 600 555 　 50 4 　 20-φ34 870 2141 1275 DZWl20
500 700 730 660 610 　 52 4 　 20-φ41 870 2276 1420 DZWl80
600 800 840 770 718 　 56 5 　 20-φ41 870 2474 1522 DZW250
4．0 50 250 160 125 100 88 20 3 4 4-φ18 590 69l 95 DZWl0A
65 280 180 145 120 110 22 3 4 8-φ18 590 711 102 DZWl5A
80 310 195 160 135 12l 22 3 4 8-φ18 590 775 115 DZW20A
100 350 230 190 160 150 24 3 4．5 8-φ23 590 871 163 DZW20A
150 450 300 250 218 204 30 3 4．5 8-φ25 590 1028 219 DZW30A
200 550 375 320 282 260 38 3 4．5 12-φ30 590 1325 373 DZW45A
250 650 445 385 345 313 42 3 4．5 12-φ34 810 1400 480 DZW60A
300 750 510 450 408 364 46 4 4．5 16-φ34 830 1653 686 DZW90
350 850 570 510 465 422 ? 4 5 16-φ41 870 179l 1021 DZWl20
400 950 655 585 535 474 58 4 5 20-φ4l 870 2092 1450 DZWl80
500 1150 755 670 612 576 62 4 5 20-φ4l 1170 2465 2150 DZW250
6.4 50 250 175 135 105 88 26 3 4 4-φ18 590 790 102 DZWl5A
65 280 200 160 130 110 28 3 4 8-φ18 590 840 106 DZW20A
80 310 210 170 140 12l 30 3 4 8-φ18 590 890 123 DZW20A
100 350 250 200 168 150 32 3 4．5 8-φ23 590 1020 154 DZW30A
150 450 340 280 240 204 38 3 4．5 8-φ25 590 1290 317 DZW30A
200 550 405 345 300 260 44 3 4．5 12-φ30 590 1475 437 DZW45A
250 650 470 400 352 313 48 3 4．5 12-φ34 810 1500 606 DZW60A
300 750 530 460 412 364 54 4 4．5 16-φ34 830 1820 732 DZW90
