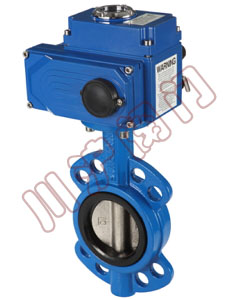

Electric wafer butterfly valve

Electric wafer butterfly valve Electric wafer butterfly valve structure
Electric wafer butterfly valve Electric wafer butterfly valve structure

1.Electric wafer butterfly valve Product Overview

Electric wafer butterfly valve is composed of high precision electric actuator and wafer type butterfly valve, actuator with integrated structure, switch input voltage AC220V, output passive contact signal (or switch position signal), adjustable input (DC4-20mA or DC1-5V) control signal and single-phase power can control the operation, electric butterfly valve has strong function, small volume, light and pleasant, reliable performance, simple matching, large flow capacity, particularly suitable for medium thick, containing particles, fiber nature of the occasion. Electric butterfly valve can be widely applied to the process of food industry, environmental protection, light industry, petroleum, chemical industry, papermaking, teaching equipment, electric power and other industries in the automatic control system.

2.Electric wafer butterfly valve Main technical parameters

DN(mm) 50～1200
PN PN0.6、1.6、2.5MPa
Connection form Wafer
Valve plate form Vertical plate
Flow characteristics Quick approximation type
Range of motion 0～90°
Amount of leakage By GB/T4213-92, 10-4, soft seal for the Kv values: zero leakage
Basic error ±2.5%
Backlash ±2.5%
Dead zone 1% (Adjustable)
Adjustable range 50:1

3.Electric thin ball valve Performance of electric actuator

Actuator type CH series actuators HQ series actuators
Power supply voltage 220V standard AC single-phase optional: 110V AC, 380/440V AC, 24V/110V/220V single-phase three-phase AC
Output torque 50N·M～2000N·M 50N·M～3000N·M
Range of motion 0～90° 0～360° 0～90°、0°～270°
Control mode The switch position lamp (two control switches), passive contact signal, 1/5K, intelligent adjustment potentiometer (4 ~ 20mA analog signal control)
Movement time 15s/30s/60s 18S～112S
Protector Overheating protection Built in overheating protection, overload protection
Environmental temperature -30°～60° -20℃～+70℃
Manual operation handle The mechanical clutch mechanism, with hand wheel operation
Mechanical limit Electrical, mechanical double limit 2 external adjustment bolt
Protection grade IP65 IP65、IP67、IP68
Explosion-proof grade No explosion ExdⅡ BT4,ExdⅡ CT6
Position measurement Optional switch or a potentiometer Potentiometer, proportional control unit
Drive motor 8W/E The squirrel cage asynchronous motor
Line interface PE1/2 "into the wire lock 2個(gè) PF 3/4"
Shell material Aluminium alloy Aluminum bronze, steel, aluminum alloy, polycarbonate
Outer coating Dry powder, epoxy polyester, strong anti-corrosion function
Using electric brake lines and unique, high positioning accuracy, sensitive actuating mechanism, start and stop quickly, stable running. Also has the characteristics of anti-jamming, anti surge voltage, anti breakdown ability

4.Electric thin ball valve Valve performance specification

DN(mm) DN15-150
PN PN(MPa) 1.6 2.5 4.0 6.4
Test pressure Strength test 15.0 24.0 37.5 48.0
Seal test 11.0 17.6 27.5 35.2
Low pressure air test 0.5～0.7
Applicable medium Water, oil, steam, acid class (temperature ≤ 200 ℃), acetic acid (temperature ≤ 200 ℃)

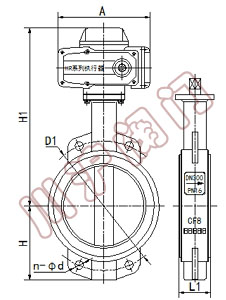

5.Electric wafer butterfly valve Dimension

DN main dimension flange dimension
D973H/F D971F/X H1 1.0MPa 1.6MPa 2.5MPa
L1 H L2 H K n-Фd K n-Фd K n-Фd
50 43 112 43 63 530 125 4-18 125 4-18 125 4-18
65 46 115 46 70 530 145 4-18 145 4-18 145 8-18
80 46 120 46 83 565 160 4-18 160 8-18 160 8-18
100 52 138 52 105 600 180 8-18 180 8-18 190 8-22
125 56 164 56 115 640 210 8-18 210 8-18 220 8-26
150 56 175 56 137 705 240 8-22 240 8-22 250 8-26
200 60 200 60 164 775 295 8-22 295 12-22 310 12-26
250 68 243 68 206 945 350 12-22 355 12-26 370 12-30
300 78 250 78 230 1070 400 12-22 410 12-26 430 16-30
350 78 280 78 248 1140 460 16-22 470 12-26 490 16-33
400 102 305 102 289 1210 515 16-26 525 16-26 550 16-36
450 114 350 114 320 1335 565 20-26 585 16-30 600 20-36
500 127 380 127 343 1415 620 20-26 650 20-30 660 20-36
600 154 445 154 413 1605 725 20-30 770 20-33 770 20-39
700 165 480 165 478 1844 840 24-30 840 24-36 875 24-42
800 190 530 190 525 2040 950 24-33 950 24-39 990 24-48
900 203 580 203 585 2255 1050 28-33 1050 28-39 1090 28-48
1000 216 650 216 640 2380 1160 28-36 1170 28-42 1210 28-56
1200 254 760 254 755 2640 1380 32-39 1390 32-48 1420 32-56
